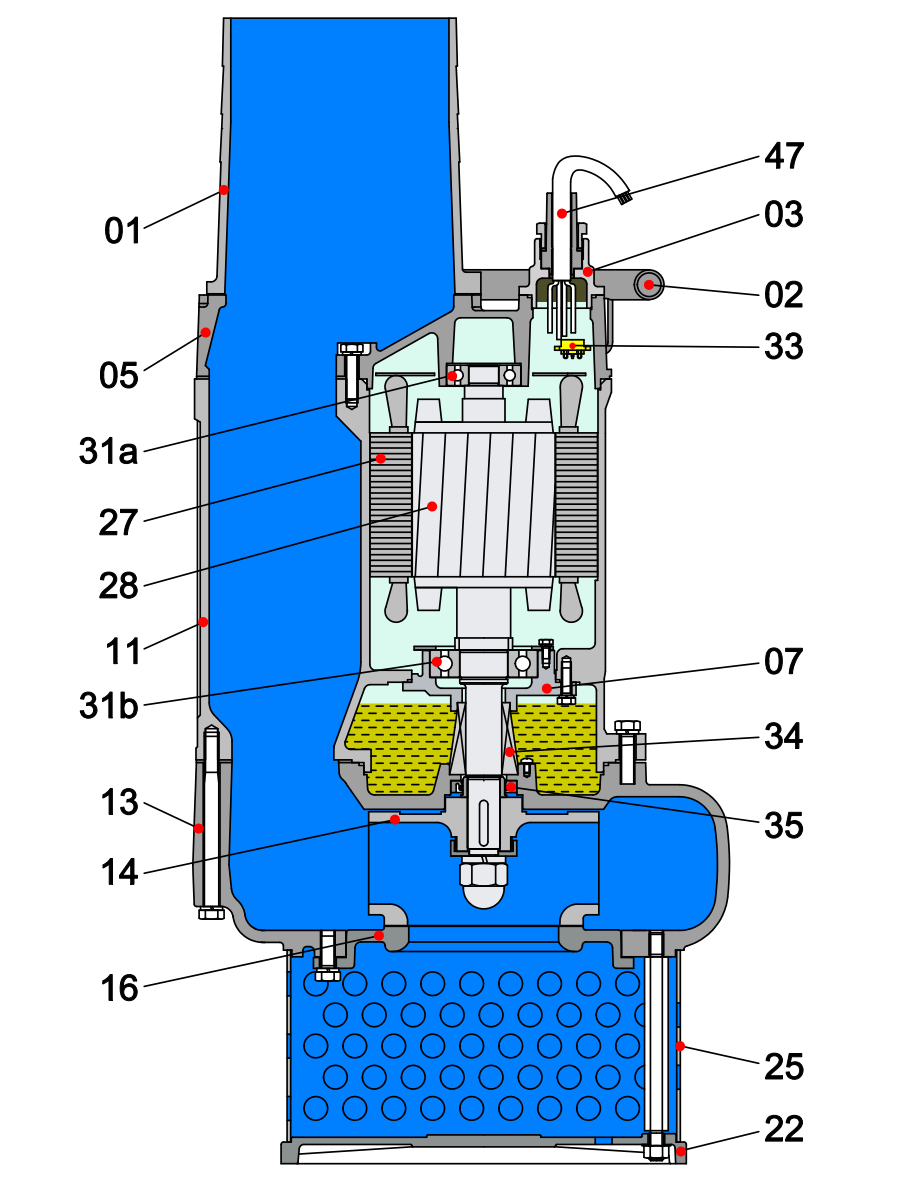

Structure and characteristics

High flow, low output drainage pump to reduce energy consumption. KBL series energy-efficient model is a three-phase high-power, heavy-duty cast iron structure submersible slurry pump. ln high-flow applications, it is more energy efficient than the KBS series. Low speed motor and cast iron pump body presents superior durability in the most demanding conditions. Even when the motor is exposed to air, the top-discharge, side-flow design ensures efficient motor cooling.

Application

Civil engineering, foundation work drainage

Tunnel construction, mining pit drainage

Rivers, ponds drainage and sediment cleanup

Flood control project drainage against clean or muddy water containing small particles in sediment

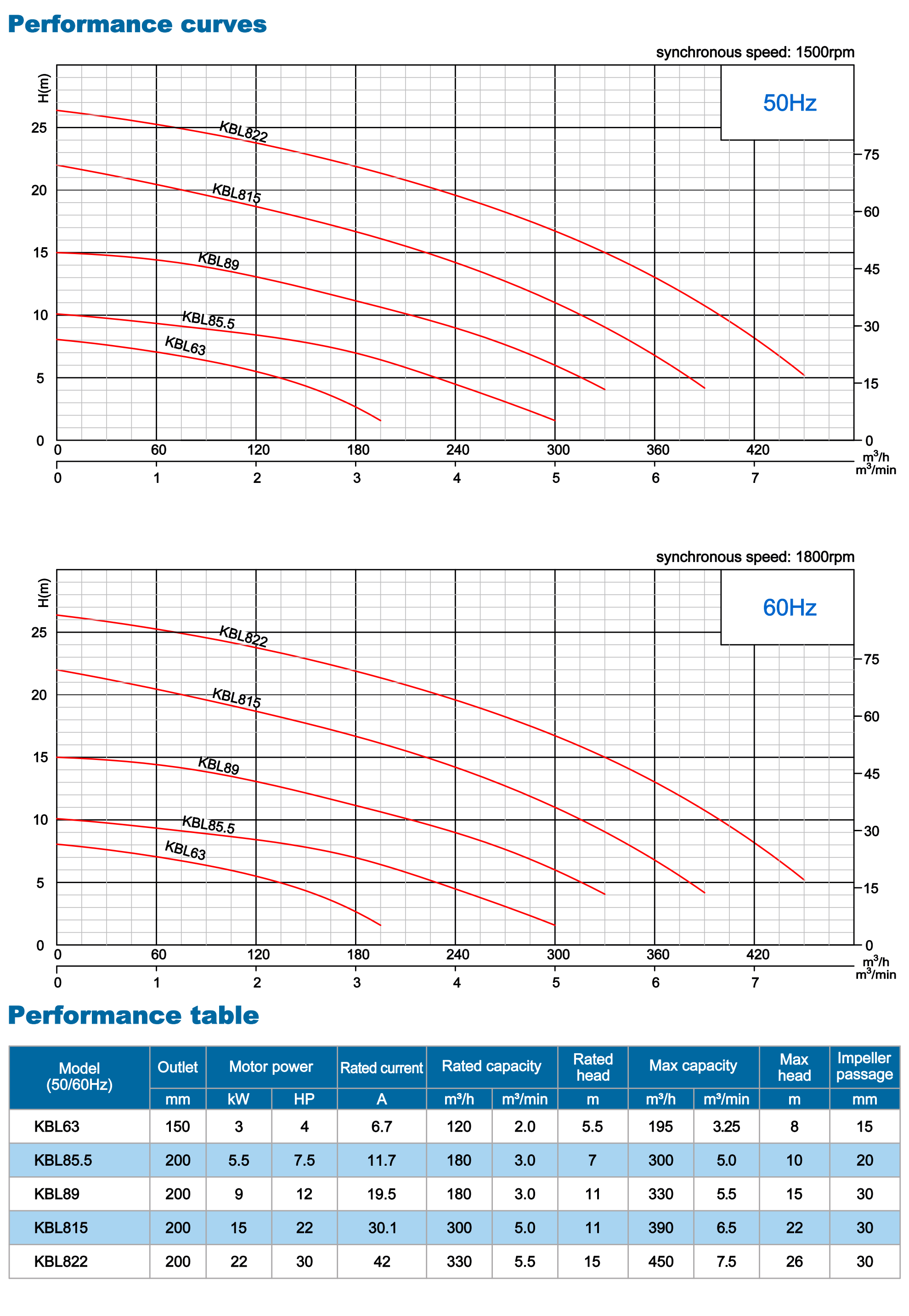

Specification

Capacity: up to 330 m³/h

Head: up to 15 meters

Power: 3 kW (4HP) to 9 kW (12HP)

Power supply: three phase 380V±10%,50Hz, 60HZ

Insulation class: F

Protection class: IP68

Cable length: 8m

Water temperature: up to 40°C

Max. water depth: 15m
